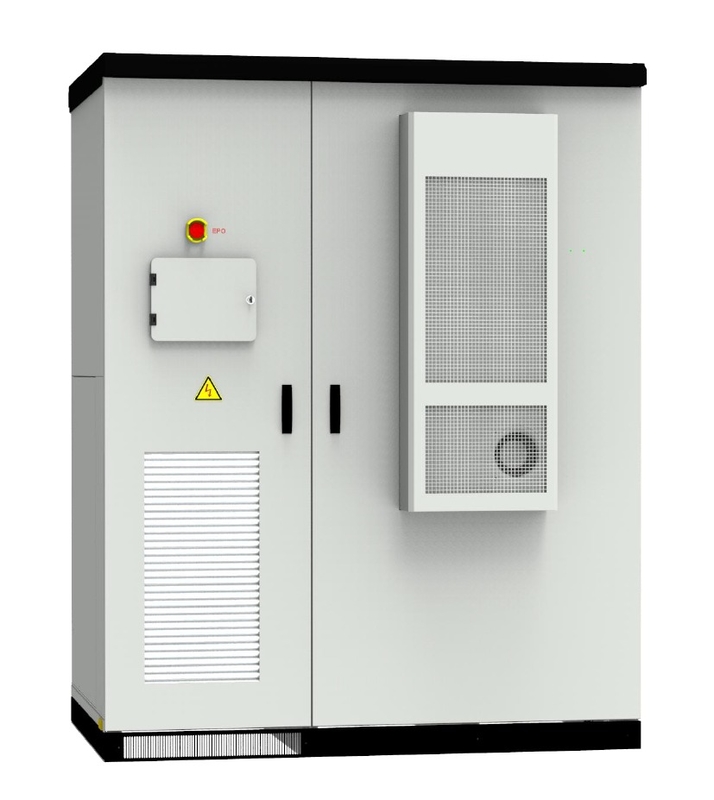

215KWh Outdoor Cabinet Energy Storage System

Detail Information

Place of Origin:

Anhui

Battery Voltage Range:

672V~864V

Energy Storage Rated Energy:

215kWh

Energy Storage Rated Capacity:

280Ah

Energy Storage Rated Voltage:

768V

Energy Storage Maximum Charge/discharge Current:

140A

Protection Level:

IP54

Communication Mode:

CAN/Ethernet / 485

Battery Type:

Lithium Iron Phosphate Battery (LFP)

Photovoltaic Rated Capacity:

100kW

Photovoltaic Voltage Range:

200~450V

Cooling Mode:

Intelligent Air-cooled

Product Description

215KWh Outdoor Cabinet Energy Storage System

Product Features

The system has been commercialized, integrating energy storage converters, photovoltaic converters, energy management systems, power distribution systems, environmental control systems, and can fully control the operation status and risks of the system.
Real-time acquisition of local load power, photovoltaic power generation and self-use, and surplus electricity storage; When the power generated by photovoltaic power generation is insufficient to provide local load, the battery storage is prioritized.
The protection level is IP54, which can perfectly cope with various types of weather in the outdoor environment.
It adopts door-mounted embedded integrated air conditioning, which does not occupy cabinet space, improves the available space of outdoor cabinets, has better structural integrity at the top, and has good waterproof performance.
The local control screen can achieve diversified functions such as system operation monitoring, energy management strategy development, equipment remote upgrading, etc.

Parameters

Specification	Monet-100TS (DC100) (215kWh)
Battery rated capacity	215kWh
Battery rated voltage	768V
Battery voltage range	672V~864V
Battery type	Lithium iron phosphate battery (LFP)
Battery cell capacity	280Ah
Series of Battery	1P20S12S
Maximum charge and discharge current	140A
Photovoltaic rated capacity	100kW
Photovoltaic voltage range	200~450V
Rated AC power	100kW
Rated AC current	144A
Rated AC voltage	400V, 3W+N+PE/3W+PE
Rated AC frequency	50/60Hz
THDI	< 3% (Rated power)
Power Factor	-1leading to+ 1 lagging
THDU	< 3% (Linear Load)
Protection level	IP54
Protection level	I
Isolation mode	No-isolation (Adding isolation transformer is optional)
Shutdown self-discharge	< 100W (Without transformer)
Display	LCD
Relative humidity	0 ~ 95% (no condensation)
Noise	< 78dB
Ambient temperature	-25°C to +60°C (with derating at temperatures above 45°C)
Cooling mode	Intelligent air-cooled
Altitude	3000m (> 3000m reduction)
Communication interface	CAN/Ethernet / 485
Dimension (W * D * H)	180012002300mm
Weight (approx.)	3100kg
