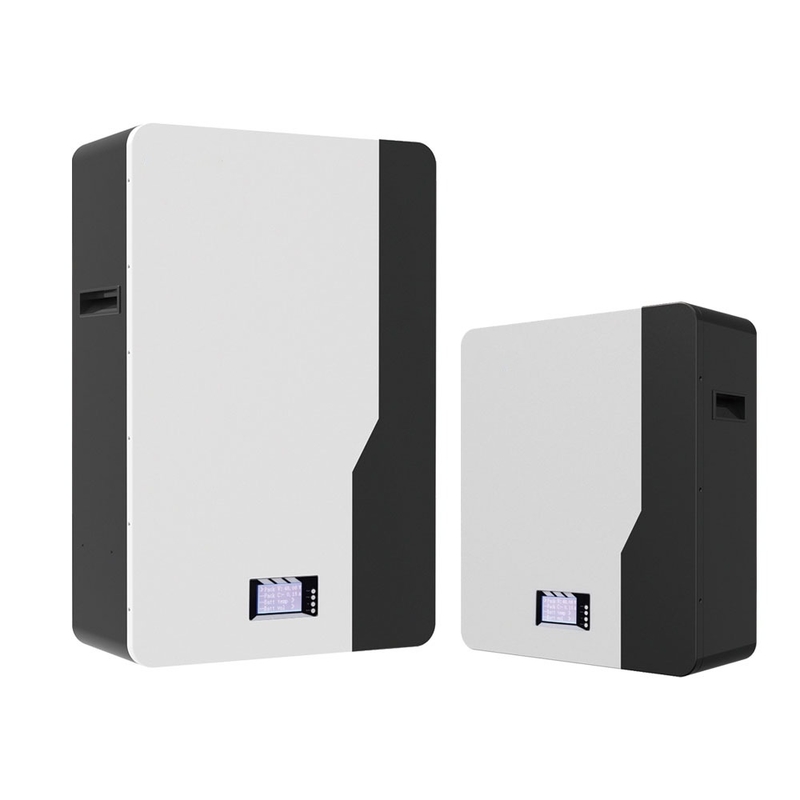

51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery

51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery

Brand Name:	kimoems
Model Number:	Refer to parameters
MOQ:	5pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UN38.3

Nominal Voltage:

51.2V

Nominal Capacity:

100Ah/200Ah

Efficency:

≥96%

Inner Resistance:

10mΩ/7mΩ

Cell Type:

LiFePO4

Charge Voltage:

58.4V

Standard Charging Current:

20A/40A

Max.Continuous Charging Current:

100A

Standard Discharge Current:

20A

Continuous Discharge Current:

100A

Peak Discharge Current:

200A(3S)

Discharge Cut-off Voltage:

42V

Cycle Life:

>6000 Times

SOC Indication:

LED Light& LCD Screen

Communication Protocol:

RS485/CAN

Matching Inverter:

Growatt,Goodwe, Deye, Luxpower, SRNE Etc

Product Description

51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery

Features

Original Grade A lithium iron phosphate battery cell has high safety and reliability
The charging and discharging efficiency is high, and the number of cycles is more than 6000 times
Compatible with most inverters on the market
Supporting RS485 and CAN communication
Modular design, can be expanded at any time to increase the energy of the system
Supporting up to 15 batteries in parallel
ON/OFF switch control output
The LCD display monitors the operating status in real time

Parameters

Product Description	M16S100BL-V	M16S200BL-V
Cells In Series	16S	16S
Rated Energy (KWh)	5.12	10.24
Rated Voltage (V)	51.2	51.2
Charging Voltage (V)	58.4	58.4
Discharge Cut-off Voltage (V)	42	42
Standard Charge Current (A)	20	40
Maximum Charging Current (A)	100	100
Maximum Discharge Current (A)	100	100
Cycle Life	≥6000 times @80% DOD, 25°C	≥6000 times @80% DOD, 25°C
Methods Of Communication	RS232/RS485/CAN	RS232/RS485/CAN
Charging Temperature	0~60°C	0~60°C
Discharge Temperature	-10~65°C	-10~65°C
How It Is Displayed	LCD display	LCD display
IP Protection	IP21	IP21
Product Dimensions (L×W×Hmm)	440×186×560	450×206×670
Net Weight (Kg)	44	87
Packing Dimensions (L×W×Hmm)	512×255×632	525×410×755
Gross Weight (Kg)	50	104
