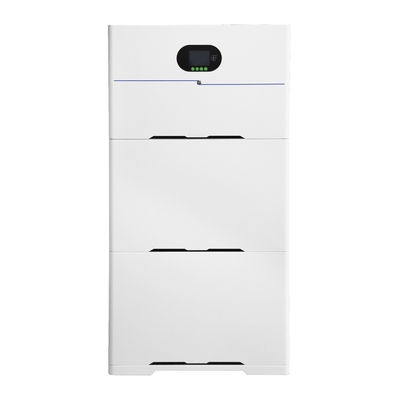

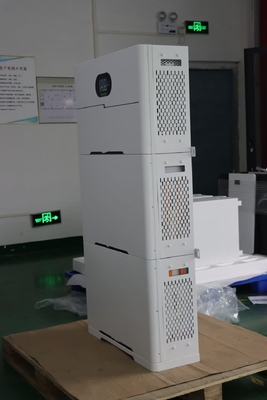

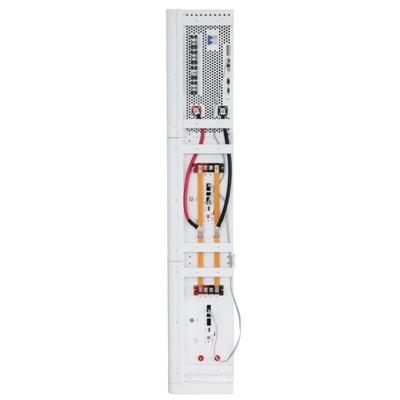

10KWH Vertical All-In-One Integrated Energy Storage System With Lithium Iron Phosphate Battery

Detail Information

Place of Origin:

China

Certification:

CE,MSDS,UN38.3

Document:

Rated Output Power:

10000W

Maximum Peak Power:

20,000VA

Motor Load Capacity:

6HP

Wave Form:

PSW (Pure Sine Wave)

Rated Output Voltage:

220V Ac (Single Phase)

Maximum Parallel Capacity:

2 Units (Up To 20KW)

Output Mode:

Off-grid/Hybrid

Types Of Solar Charging:

MPPT

Maximum Solar Array Power:

5,500W+5500W

Maximum Solar Open-circuit Voltage:

500Vdc+500Vdc

Standard:

UN38 3.MSDS,IEC62619:2017.EN IEC61000-3-2,EN IEC61000-6-1.ROHS

Product Description

10KWH Vertical All-In-One Integrated Energy Storage System With Lithium Iron Phosphate Battery

MAIN FEATURES

Original Class A high-reliability lithium iron phosphate battery, green and environmentally friendly

Intelligent integrated BMS, all-round protection strategy and fault detection

Supporting off-grid/hybrid output

Multiple charging and discharging modes are available

Play and plug design, easy to install

Up to two systems in parallel, with dual storage and output

Supporting for monitoring real-time data through the app

LCD display, dynamic display of system operating status data

PARAMETERS

Product Description	Specification
Inverter module	INV10KLP1-V5.0
Output
Rated output power	10,000W
Maximum peak power	20,000VA
Motor load capacity	6HP
Wave form	PSW (Pure Sine Wave)
Rated output voltage	220V ac (Single Phase)
Maximum parallel capacity	2 units (Up to 20KW)
Output mode	Off-grid/Hybrid
Solar input
Types of solar charging	MPPT
Maximum solar array power	5,500W+5500W
Maximum solar open-circuit voltage	500Vdc+500Vdc
Grid/generator inputs
Input voltage range	90–280Vac
Bypass overload current	63A
Battery charging
Maximum solar charging current	200A
Maximum grid/generator charging current	120A
Routine
Dimensions (L×W×Hmm)	750×470×250
Weight (Kg)	~32
Battery module	PC-AIOV13B
Battery power	13.44KWh
Rated voltage	48V
Rated capacity	280Ah
Battery type	Prismatic cell
Cycle life	≥6000 (80%DOD, 0.5C, 25°C)
Maximum parallel capacity	4 units (Max. 53.76KWh)
Dimensions (L×W×Hmm)	750×470×250
Weight (Kg)	~105
Standard	UN38.3, MSDS, IEC62619:2017,EN IEC61000-3-2, EN IEC61000-6-1,RoHS
