14.4kWH To 38.4kWH High Voltage Lithium Ion LiFePO4 Battery Emergency Backup Off Grid Functionality

14.4kWH To 38.4kWH High Voltage Lithium Ion LiFePO4 Battery Emergency Backup Off Grid Functionality

Brand Name:	kimoems
Model Number:	Refer to parameters
MOQ:	1pc
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UN38.3

Document:

14.4kWH To 38.4kWH High Vol...ry.pdf

Number Of Modules:

1 2 3 4 5 6 7 8

Nominal Voltage:

96V-384V

Battery Capacity:

100Ah

Battery Energy:

4.8KWH 9.6KWH 14.4KWH 19.2KWH 24KWH 28.8KWH 33.6KWH 38.4KWH

Battery Voltage:

48V 96V 144V 192V 240V 288V 336V 384V

Standard Charge/Discharge Current:

20A

Battery Type:

Lithium Lron Phosphate(LFP)

Operating Voltage Range:

80-438V

IP Protection:

IP54

Installation:

Floor Installation

Operation Temperature:

-10~60°C

BMS Monitoring Parameters:

SOC, System Voltage,current, Cell Voltage, Cell Temperature, PCBA Temperature Measurement

Communication Port:

CAN

Product Description

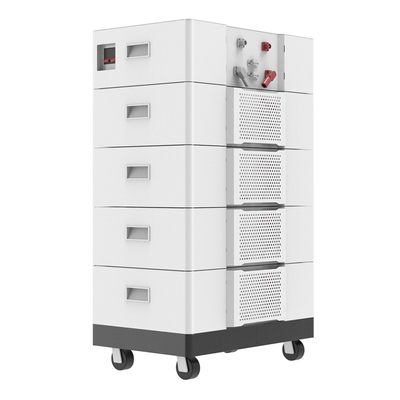

14.4kWH To 38.4kWH High Voltage Lithium Ion LiFePO4 Battery Emergency Backup Off Grid Functionality

HVM BATTERY FEATURES

Modular design, easy to expand the capacity, supports up to 8 battery packs in series, with optional energy of 9.6kwh~38.4kwh;

LCD display to monitor the operating status of the battery in real time;

Achieving the maximum efficiency through the high-voltage series connection, with high-power emergency backup and off-grid functions;

Patented modular plug design, no internal wiring required, highly flexible and easy to install;

Grade A lithium iron phosphate (LFP) battery cell with 6000 cycles, high safety and long service life;

Built-in BMS intelligent protection function, compatible with leading high-voltage inverters;

Universal wheel design at the bottom for easy movement and use

PARAMETERS

Product Description	HVM45S100BL	HVM60S100BL	HVM75S100BL	HVM90S100BL	HVM105S100BL	HVM120S100BL
Number of Modules	3	4	5	6	7	8
Battery Capacity	100Ah	100Ah	100Ah	100Ah	100Ah	100Ah
Battery Energy	14.4KWh	19.2KWh	24KWh	28.8KWh	33.6KWh	38.4KWh
Size(L×W×H) mm	570×380×833	570×380×1000	570×380×1167	570×380×1334	570×380×1501	570×380×1668
Weight	148Kg	189Kg	230Kg	271Kg	312Kg	353Kg
Standard Charge Current	20A	20A	20A	20A	20A	20A
Standard Discharge Current	20A	20A	20A	20A	20A	20A
Battery Type	LFP	LFP	LFP	LFP	LFP	LFP
Cycle Life	≥6000 times @80% DOD,25°C	≥6000 times @80% DOD,25°C	≥6000 times @80% DOD,25°C	≥6000 times @80% DOD,25°C	≥6000 times @80% DOD,25°C	≥6000 times @80% DOD,25°C
Nominal Voltage	144V	192V	240V	288V	336V	384V
Operating Voltage Range	160-438V	160-438V	160-438V	160-438V	160-438V	160-438V
IP Protection	IP54	IP54	IP54	IP54	IP54	IP54
Installation	Floor installation	Floor installation	Floor installation	Floor installation	Floor installation	Floor installation
Charging Temperature	0~60°C	0~60°C	0~60°C	0~60°C	0~60°C	0~60°C
Discharge Temperature	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~60°C
BMS Monitoring Parameters	SOC,System voltage,current,cell voltage,cell temperature,PCBA temperature measurement
Communication Port	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN
Warranty	5 or 10 years(optional)
