48V 100Ah 200Ah Energy Storage LiFePO4 Battery Rack Mounted Stacked

48V 100Ah 200Ah Energy Storage LiFePO4 Battery Rack Mounted Stacked

Brand Name:	kimoems or OEM
Model Number:	M15S100BL-U/M15S200BL-U
MOQ:	5PC
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE MSDS UN38.3 UL

Document:

48V 100Ah 200Ah Energy Stor...ed.pdf

Cells In Series:

15S

Rated Energy (KWh):

4.8KWh/9.6KWh

Rated Voltage (V):

Charging Voltage (V):

54.7

Cycle Life:

≥ 6000 Times @ 80% DOD, 25 °C

Methods Of Communication:

RS485/CAN

Discharge Temperature:

-10~65°C

Highlight:

100Ah Energy Storage LiFePO4 Battery

48V Energy Storage LiFePO4 Battery

LiFePO4 Battery Rack Mounted

Product Description

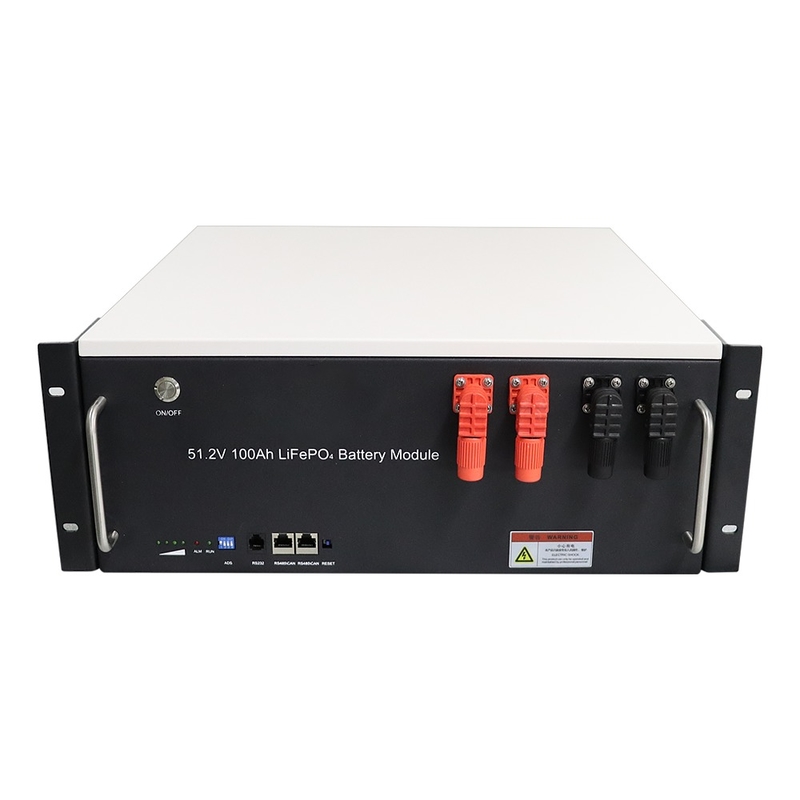

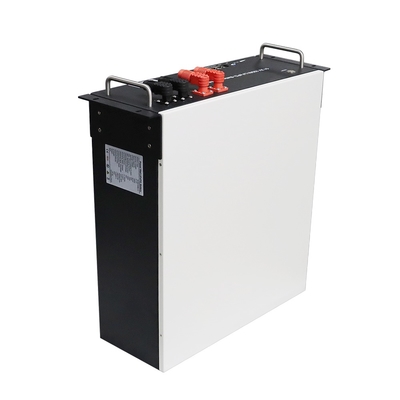

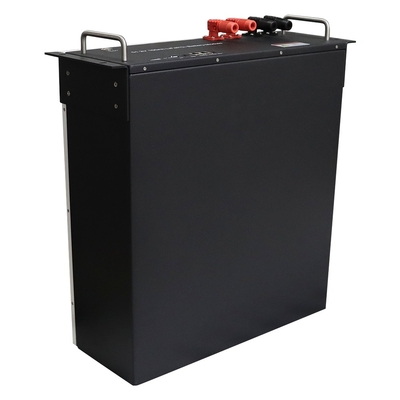

48V 100Ah 200Ah Energy Storage LiFePO4 Battery Rack Mounted Stacked

FEATURES

Standardized design: Standard 3U and 4U case, good applicability;

In parallel to enlarge energy: Add the current limiting module, support multiple battery parallel use, expand the battery capacity, meet the high energy demand of customers;

Intelligent lithium battery management system: With RS485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers' requirements;

Balancing: Automatic collection of battery single series voltage, pressure difference up to 30MV (can be set), automatic start equalization function;

Warning function: Warning functions such as overcharge, overdischarge, overcurrent, high temperature and low temperature can greatly reduce the potential safety hazard.

PARAMETERS

Product Model	M15S100BL-U	M15S200BL-U
Cells In Series	15S	15S
Rated Energy (KWh)	4.8	9.6
Rated Voltage (V)	48	48
Charging Voltage (V)	54.7	54.7
Discharge Cut-off Voltage (V)	42	42
Standard Charge Current (A)	20	20
Maximum Charging Current (A)	100	100
Maximum Discharge Current (A)	100	100
Cycle Life	≥ 6000 times @ 80% DOD, 25 °C	≥ 6000 times @ 80% DOD, 25 °C
Methods Of Communication	RS485/CAN	RS485/CAN
Charging Temperature	0~60°C	0~60°C
Discharge Temperature	-10~65°C	-10~65°C
How It Is Displayed	/	/
IP Protection	IP 21	IP 21
Product Dimensions (L×W×Hmm)	485×445×175	630×490×255
Net Weight (Kg)	42.2	75.1
Packing Dimensions (L×W×Hmm)	550×520×230	755×525×410
Gross Weight (Kg)	45	87.8
