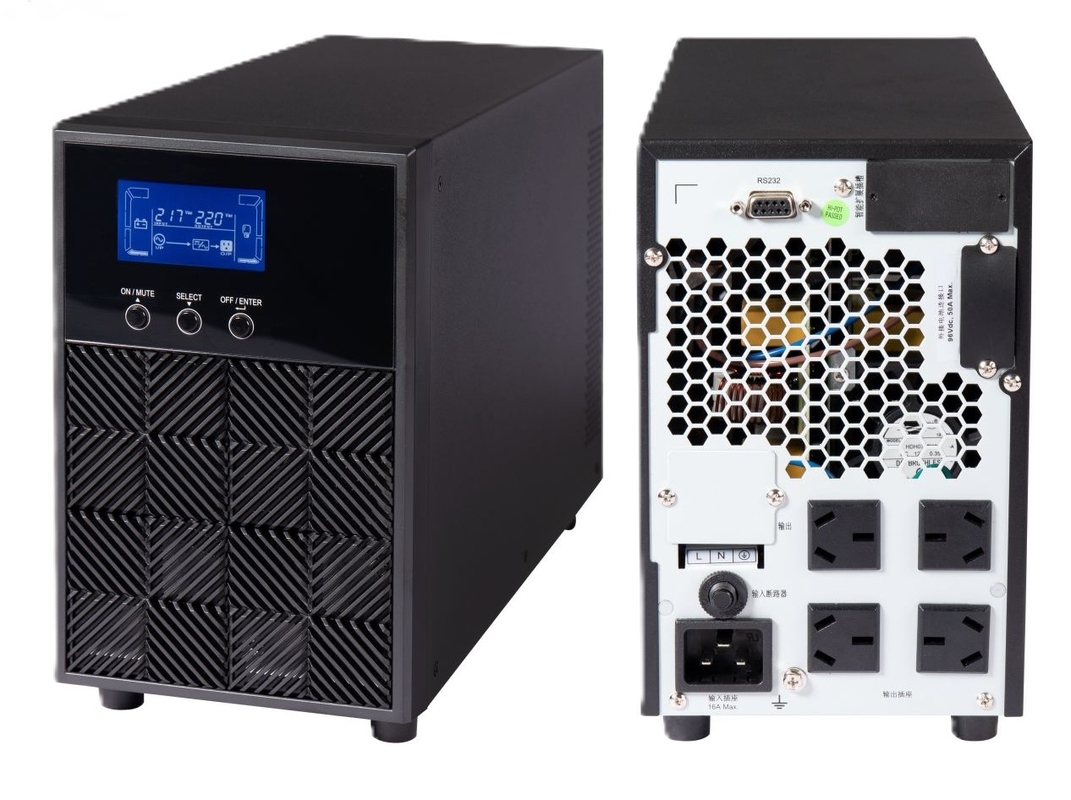

1-10kVA Single-Phase Online Tower UPS with 0.9 PF

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	10pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

1kva Ups/2kva Ups/3kva Ups/6kva Ups/10kva Ups

Operation:

1P/1P, Online Double Conversion

Applications:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Characteristics:

Wide Range Of Input Voltage Tolerance. 3-level Topology, High Performance And Efficiency.Adapt To Half-wave Load. Online Double Conversion, Full Digital Control. Output PF=1,high Load Adaptability.

Type:

Tower Ups Power Supply

PF:

0.9

Battery Voltage:

To 240Vdc

Highlight:

single-phase tower UPS

high frequency UPS series

online UPS 11-H1KVA

Product Description

HIGH FREQUENCY SINGLE-PHASE SERIES 11-H1KVA TO H10KVA

PF 0.9

Product Features

High efficiency (up to 98.5%);

IGBT rectification technology;

Compact and reliable structure;

Electrical isolation;

High overload capability;

LCD display.

Product Profile

Power range: 1–10 kVA

Operation mode: Single input single output, dual-conversion online operation.

Applications: Widely used in various industries such as government, finance,

telecommunications, education, transportation, meteorology, broadcasting and

television, industry and commerce taxation, healthcare, energy and power.

Product Characteristics

True online dual conversion

Microprocessor control ensures high reliability

Input power factor correction

Output power factor up to 0.9

Wide utility input range (110 V–300 V)

High-efficiency frequency conversion mode

Generator compatibility

Optional precision SNMP card enables perfect monitoring alone or with USB/RS232

Easy operation and comprehensive monitoring of UPS status via display

ECO mode provides energy-saving benefits

Emergency power off (EPO)

Models above 6 kVA use DSP technology with built-in maintenance bypass switch

(optional)

Smart battery charging design extends battery life and performance

Built-in isolation transformer (optional)

Parameters

Model	11-H1kVA	11-H2kVA	11-H3kVA	11-H6kVA	11-H10kVA
Phase	Single Phase In/Out
Capacity	1000VA/900W	2000VA/1800W	3000VA/2700W	6000VA/5400W	10000VA/9000W
Input
Input Voltage	200/208/220/230/240VAC			208/220/230/240VAC
Voltage Range	110-300VAC @ 50% load; 160-280VAC @ 100% load			110-300VAC @ 50% load; 176-300VAC @ 100% load
Frequency Range	40Hz-70Hz			46Hz-54Hz or 56Hz-64Hz
Power Factor	≥0.99 @ 100% load
Output
Output Voltage	200/208/220/230/240VAC			208/220/230/240VAC
Voltage Regulation (Battery Mode)	±1%
Frequency Range (Synchronization Range)	47-53Hz or 57-63Hz			46-54Hz or 56-64Hz
Frequency Range (Battery Mode)	50±0.25Hz or 60±0.3Hz			50±0.1Hz or 60±0.1Hz
Crest Factor	3:01
THD	≤3% THD (Linear Load); ≤6% THD (Non-linear Load)			≤3% THD (Linear Load); ≤5% THD (Non-linear Load)
Overload Capacity	Line Mode: 100%~110%: 10min; 110%~130%: 1min; >130%: 1s Battery Mode: 100%~110%: 30s; 110%~130%: 10s; >130%: 1s

Transfer Time
Line to Battery	0ms
Inverter to Bypass	4ms (Standard conditions)			0ms
Waveform (Battery Mode)	Pure Sine Wave
Efficiency
Line Mode	88%	89%	90%	92%	93%
Battery Mode	83%	87%	88%	90%	91%
Battery
Standard Model (S)	12V7Ah
Quantity	2	4	6	12	16
Max. Charging Current	1.0A (Max.)			Preset: 1.0A ± 10%, Max: 2.0A ± 10%
Long Runtime Model (L)	Subject to application
Quantity	3	6	8	16-20 pcs (Adjustable)
Max. Charging Current	1A/2A/4A/6A (Adjustable)			1A/2A/4A/6A (Adjustable, 6A only for 16 battery units)
Display & Alarms
LCD Display	Load level, Battery capacity, Line mode, Battery mode, Bypass mode, Fault indication
Alarm Sound
Battery Mode	Beeps every 4 seconds
Low Battery	Beeps every 1 second
Overload	Beeps every 1 second
Fault	Continuous beep
Physical Specifications
Standard Model
Dimensions: DxWxH (mm)	282×145×220	397×145×220	421×190×318	369×190×688	442×190×688
Net Weight (kg)	8.7	15.7	24.6	51	65
Long Runtime Model
Dimensions: DxWxH (mm)	282×145×220	397×145×220		369×190×318	442×190×318
Net Weight (kg)	4.1	6.9	7.4	12	15
Operating Environment
Temp. & Humidity	20-95% RH, 0-40°C (Non-condensing)			0-95% RH, 0-40°C (Non-condensing)
Noise	< 50dB @ 1m			< 55dB @ 1m	< 58dB @ 1m
Communication & Management
Intelligent RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, and MAC
Optional SNMP Card	Supports SNMP management and network management for power management
Note: 200/208/220/230/240VAC only applicable to Long Runtime models (200VAC only applicable to 1-3kVA). Current product specifications are subject to change without notice. L represents Long Runtime model.
