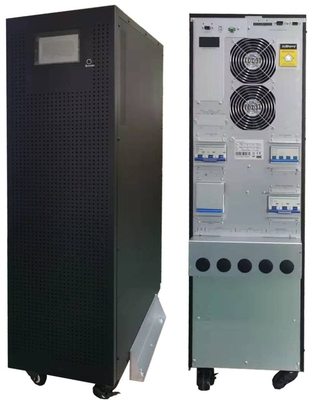

3 Phase Online UPS 10-200kVA Double Conversion High Frequency

Brand Name:	kimoems
Model Number:	EX3C310KVA-200KVA
MOQ:	1pc
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

33.pdf

Power Range:

10/20/30/40/60/80kVA/100kVA/120kVA/160kVA/180kVA/200kVA

Operation:

3P/3P, Online Double Conversion

Application:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Input Power Factor:

>0.99

Highlight:

3C310KVA online tower UPS

200KVA high-frequency UPS

tower UPS with warranty

Product Description

HIGH-FREQUENCY 3/3 SERIES 3C310-200K

Interface Management Function

The LCD display records UPS operating status and parameter information in real time, facilitating user management of the UPS.

High Environmental Adaptability Function

Circuit boards are housed in a fully enclosed space with "triple-proof" (dustproof, moisture-proof, corrosion-proof) coating, making them suitable for harsh environments such as tunnels and squares.

Network Monitoring Function

Via RS232/RS485 communication interfaces and SNMP network adapters, combined with UPS intelligent monitoring software, the system can communicate with computers. All UPS parameters are clearly displayed on the communication interface.

Product Features

High-reliability design

True dual-conversion technology

DSP technology ensures high performance

Output power factor of 1.0

Full-range active power factor correction

50Hz/60Hz frequency converter mode

Energy-saving ECO mode operation

Emergency power off (EPO) function

Generator compatibility

Dual AC input

Supports parallel operation of up to 6 units with shared batteries

3-stage charging design optimizes battery performance

Adjustable number of batteries

Standard maintenance bypass

Walk-in power function

Optional isolation transformer

PARAMETERS

Parameter / Model	EX3C3-10kVA	EX3C3-20kVA	EX3C3-30kVA	EX3C3-40kVA	EX3C3-60kVA	EX3C3-80kVA	EX3C3-100kVA	EX3C3-120kVA	EX3C3-160kVA	EX3C3-200kVA
Phase	3 Phase + Neutral (3PH+N)
Capacity	10kVA/9kW	20kVA/18kW	30kVA/30kW	40kVA/40kW	60kVA/60kW	80kVA/80kW	100kVA/100kW	120kVA/120kW	160kVA/160kW	200kVA/200kW
INPUT
Input Voltage	3 x 380/400/415 VAC (3PH+N)
Voltage Range	190-520VAC (3 Phase) @ 50% load; 305-478VAC (3 Phase) @ 100% load
Frequency Range	40-70Hz
Power Factor	≥ 0.99 @ 100% load
Input Current THD	< 1% @ 100% linear load; < 3% @ 100% non-linear load
OUTPUT
Output Voltage	3 x 360/380/400/415 VAC (3PH+N)
Voltage Stability (Batt)	±1%
Frequency (Sync Range)	46-54Hz or 56-64Hz
Frequency (Battery Mode)	50/60Hz ±1%
Crest Factor	9
THD	≤ 1% THD (linear load); ≤ 3% THD (non-linear load)
TRANSFER TIMES
Mains to Battery	0ms
Inverter to Bypass	0ms
Waveform (Battery Mode)	Pure Sine Wave
OVERLOAD	100 ~ 110% 60min, 110 ~ 125% 10min, 125% ~ 150% 1min, >150% Immediate protection
Parallel Capability	Up to 6 units
EFFICIENCY
Mains/ECO/Battery Mode	96%
BATTERY
Battery Type	Depends on applicant
Number of Batteries (Std)	16-20 (Adjustable) Default 16		32-40 (Adjustable)
Float Charge Voltage	±13.65V*N±1% (N=16-20)
Max. Charge Current	1A-12A (Adjustable)						2A-40A (Adjustable)		3A-60A (Adjustable)
DISPLAY & INDICATION
LCD/TOUCH SCREEN Display	UPS status, load capacity, battery capacity, input/output voltage, discharge time, fault indication
PHYSICAL
Dimensions DxWxH (mm)	592x250x576		815x300x1000				974x600x1600
Net Weight (kg) (Std/Long)	38	40	65	66	98	113	200		265
ENVIRONMENTAL
Operating Temperature	0-40°C
Relative Humidity	< 95% Non-condensing
Noise Level	< 65dB @ 1 meter						< 70dB @ 1 meter
CONTROL & MANAGEMENT
Intelligent RS-232/USB	Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, MAC
Optional SNMP Card	Supports SNMP management and network management via optional card
