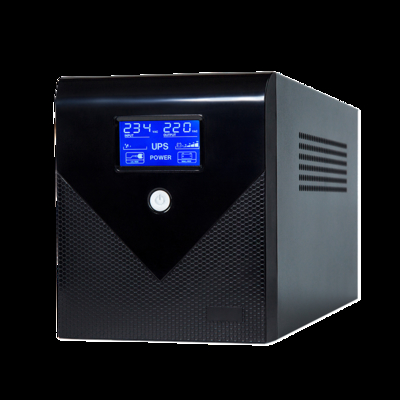

Offline Tower UPS 600kVA to 3000kVA with 0.6 PF

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	10pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

600kva/850kva/1000kva/1500kva/2000kva/3000kva

Operation:

Off Line Ups/line Ups

Characteristics:

Operates Normally Within Specified Input Voltage. Automatically Switches To Inverter Mode During Over/under Voltage, Protecting Connected Equipment And Allowing Continued Operation During Grid Abnormalities.

Type:

Tower Ups Power Supply/back Off Ups

PF:

0.6

Highlight:

offline UPS backup system

tower UPS 650VAC to 3000VAC

online UPS with warranty

Product Description

BACKUP OFF LINE UPS SERIES FROM 650VAC TO 3000VAC

WITH USB

Product Features

Wide Input Voltage Range:

Operates normally within specified input voltage. Automatically switches to

inverter mode during over/under voltage, protecting connected equipment

and allowing continued operation during grid abnormalities.

Stable Output:

Provides a stable output voltage within the input range.

Overload Protection (Inverter Mode):

Reduces output voltage during overload; (returns to normal) when load

decreases. Prevents shutdowns from instantaneous overloads. shuts down

for serious overloads.

Surge protection, Serial/USB Port

Short Circuit Protection:

Automatically shuts down due to load short circuits or internal component

failures (e.g., power tube breakdown).

Auto-Restart:

Automatically starts up again after mains power is restored following an

inverter-mode shutdown.

Small Current Switch:

Uses a small current switch, extending service life compared to traditional

high-current switches for battery/mains pathways.850

Parameters

Item No.	KMBO650	KMBO850	KMBO1000	KMBO1500	KMBO2000	KMBO3000
Capacity (VA)	650VA	850VA	1000VA	1500VA	2000VA	3000VA
Capacity (W)	360W	510W	600W	900W	1200W	1800W
Input Voltage Range	150-270VAC
Output Voltage	220V ±10%
Conversion Time	4-6ms
Output Waveform	Simulated sine wave
Battery Configuration	12V/7Ah × 1		12V/7Ah × 2		12V/9Ah × 2	12V/14Ah × 2
Charging Time	6-8 hours
Display Mode	LED/LCD
Product Size (mm)	315×90×142	315×90×142	367×142×167			410×150×215
Packing Size (mm)	380×200×208	380×200×208	440×210×240			485×230×300
Weight (kg)	4.5	4.7	8.9	10	11	16.5
Operating Environment	0-40°C, ≤90% RH
Noise Level	<40 dB

Indicator Status	Buzzer Sound	System State
Long bright	Silent	Mains normal, mains power supply, battery charging
Shiny	Intermittent	Mains abnormal (outage/high/low voltage), inverter operating
Rapid flashing	Quick beep	Mains abnormal, inverter operating, battery low
Flash then off	Silent	Battery voltage too low, protection shutdown
Long bright	Off	Excessive overload or output short circuit, protection shutdown
Bright to bright	Silent	Mains normal, power supply switched from inverter to mains
