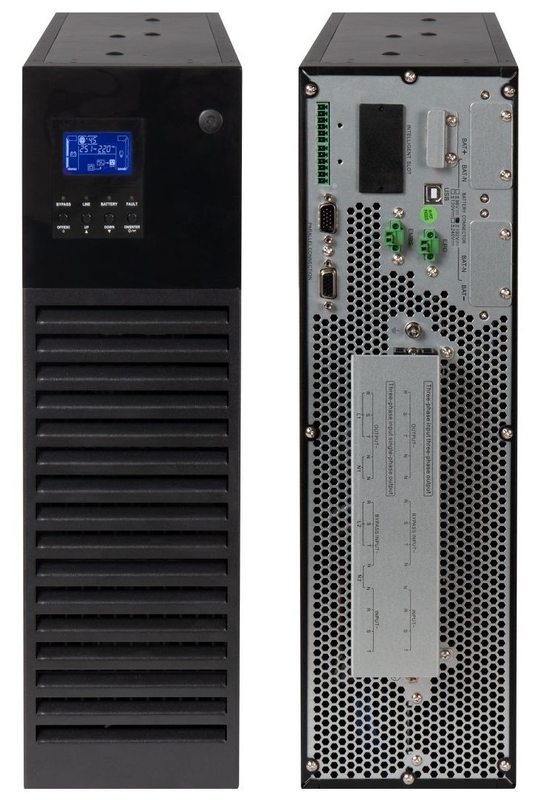

HR33 Rack Mount UPS 10-60kVA with LCD Display and Dual Conversion

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	5pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

10/15/20/30/40/60kVA

Applications:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Characteristics:

True Dual Conversion Technology LCD Screen Auto-Rotation (Only For 10K-20K Models) DSP Technology Ensures Performance Output Power Factor Of 1.0 Power Factor Correction 50Hz/60Hz Frequency Converter Mode Energy-Saving ECO Mode Emergency Power Off (EPO) Fun

Voltage Range:

190-520VAC (3-phase) At 50% Load; 305-478VAC (3-phase) At 100% Load

Frequency Range:

46-54Hz Or 56-64Hz

Highlight:

rack mounted UPS high-frequency

tower convertible UPS 10KL-60KL

rack mounted UPS with warranty

Product Description

High-Frequency Rack/Tower Convertible Series HR33 10KL-60KL

Interface Management Function

The LCD display records UPS operating status and parameter

information in real time, facilitating user management

High Environmental Adaptability Function

Circuit boards are housed in a fully enclosed space with triple-proof (dustproof, moisture-proof, corrosion-proof) coating, making them suitable for harsh environments such as tunnels and plazas.

Network Monitoring Function

Via RS232/RS485 communication interfaces and SNMP network adapters, combined with UPS intelligent monitoring software, the system communicates with computers. All UPS parameters are clearly displayed on the interface.

Product Features

True Dual Conversion Technology

LCD Screen Auto-Rotation (Only for 10K-20K Models)

DSP Technology Ensures Performance

Output Power Factor of 1.0

Power Factor Correction

50Hz/60Hz Frequency Converter Mode

Energy-Saving ECO Mode

Emergency Power Off (EPO) Function

Generator Compatibility & Dual Input Support

3-Stage Charging Design Optimizes Battery Performance

Adjustable Battery Quantity for Extended Runtime

Shared Battery Group Support

Optional Isolation Transformer & Parallel Operation

Multiple Communication Options: SNMP+USB+RS232

Maintenance Bypass & Walk-in Power Function

PARAMETERS

Model	HR33-10KL	HR33-15KL	HR33-20KL	HR33-30KL	HR33-40KL	HR33-60KL
Capacity	10kVA/10kW	15kVA/15kW	20kVA/20kW	30kVA/30kW	40kVA/40kW	60kVA/60kW
Input
Input Voltage	3×380VAC (3PH+N)
Voltage Range	190-520VAC (3-phase) at 50% load; 305-478VAC (3-phase) at 100% load
Frequency Range	46-54Hz or 56-64Hz
Power Factor	>0.99 @ 100% load
Output
Output Voltage	3×360VAC/380VAC/400VAC/415VAC (3-phase+N)
Voltage Stability (Battery Mode)	±1%
Frequency Range (Synchronization Range)	46-54Hz @50Hz system; 56-64Hz @60Hz system
Frequency Range (Battery Mode)	50±0.1Hz or 60±0.1Hz
Crest Factor	3:1 (max)
THD	≤2% (resistive load); ≤5% (non-resistive load)
Transfer Time	Line to Battery: 0ms
	Inverter to Bypass: 0ms
Waveform (Battery Mode)	Pure Sine Wave
Efficiency
Line Mode	95.50%
Battery Mode	94.50%
ECO Mode	98.50%			/
Battery
Extended Runtime Model
Battery Type	Depends on supplier
Quantity	16-20 (adjustable, default 16)	32-40 cells		32-40 cells (adjustable)
Charging Voltage	±13.65V×N (N=8-10)	±13.65V×N (N=16-20)		±13.65V×N±1% (N=16-20)
Max Charging Current	1A-12A (adjustable)				1A-16A (adjustable)	1A-18A (adjustable)
Display
LCD	System status, load level, battery capacity, line mode, battery mode, bypass mode, fault indication, input/output voltage
Overload Capacity
Line Mode	100-110%: 60 min; 110-125%: 10 min; 125-150%: 1 min; >150%: immediate protection
Battery Mode	100-110%: 60 min; 110-125%: 10 min; 125-150%: 1 min; >150%: immediate protection
Physical Specifications
Extended Runtime Model
Dimensions (D×W×H, mm)	680×458×133					797×438×170
Net Weight (kg)	27	30	30	34	40	45
Operating Environment
Temperature & Humidity	0-95% RH, 0-40°C (non-condensing)
Noise	<60 dB @1m		<65 dB @1m	<70 dB @1m
Control & Management
Smart RS-232/USB	Compatible with Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, and Mac
Optional SNMP	Supports SNMP and network management for power monitoring
