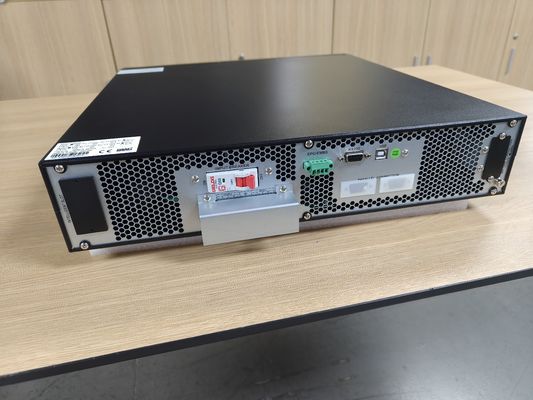

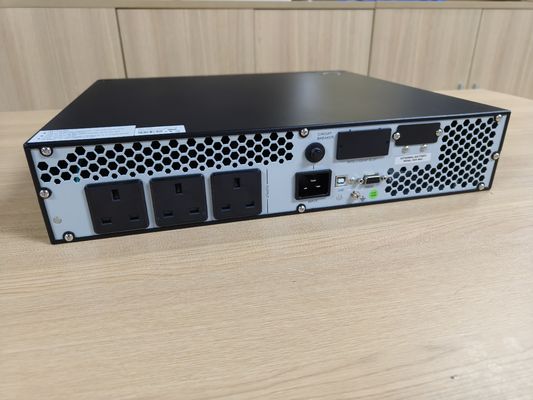

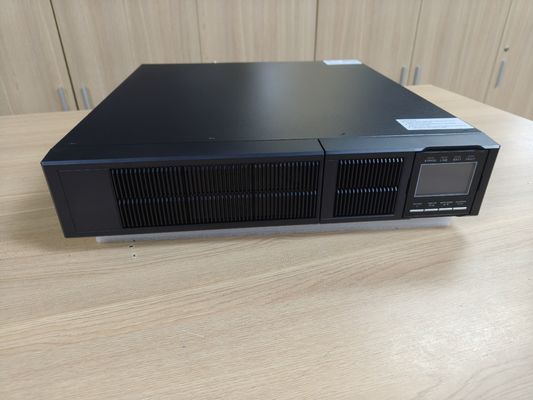

3kva 6kva 10kVA Rack Mount UPS With 98.5% Efficiency And PF1.0 Single Phase

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	10pcs
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

1kVA Or 2kVA Or 3kVA 6kVA 10kVA

Operation:

High Efficiency (up To 98.5%)

Characteristics:

Two Versions Available: PF0.8 And PF1.0MCU Chip Control ECO Energy-saving Mode Optional Maintenance Bypass Switch (6-10 KVA Models) Add-on Output Isolation Transformer Available (installed Before Delivery) Standard EPO (Emergency Power Off) For 6-10 KVA Mo

Product Description

3kva 6kva 10kVA Rack Mount UPS With 98.5% Efficiency And PF1.0 Single Phase

High-Frequency Rack-Mount Series H1KR-H10KR(L)

Product Features

High efficiency (up to 98.5%)
IGBT rectification technology
Compact and reliable structure
Electrical isolation
High overload capability
LCD display

Product Profile

Power Range: 1-10 kVA

Operation Mode: Single input single output (1-10 kVA)

Applications: Widely used in government, finance, telecommunications, education, transportation, meteorology, broadcasting, industrial and commercial taxation, healthcare, energy, power, and other industries.

Product Characteristics

True online dual conversion
Compatible with generator input (generator capacity must be twice the UPS capacity)
Wide input voltage range (110-300 V), suitable for harsh grid environments (1-10 kVA)
Auto-restart after power recovery when battery is depleted in battery mode
MCU chip control
ECO energy-saving mode
Optional maintenance bypass switch (6-10 kVA models)
Add-on output isolation transformer available (installed before delivery)
Standard EPO (Emergency Power Off) for 6-10 kVA models
Two versions available: PF0.8 and PF1.0
Compact size, user-friendly operation, high power density, strong stability, cost-effective, and widely applicable

Technical Specifications

Model	H1KR	H2KR	H3KR	H6KR(L)	H10KR(L)
Capacity	1kVA/1kW	2kVA/2kW	3kVA/3kW	6kVA/6kW	10kVA/10kW
Input
Voltage Range	110VAC±3% @ 50% load; 176VAC±3% @ 100% load
Min. Transfer Voltage	180VAC/160VAC/140VAC/120VAC±5% (Ambient temp. <35°C) (Based on load % 100-80 / 80-70 / 70-60 / 60-0)
Min. Recovery Voltage	195VAC/175VAC/155VAC/135VAC±5% (Ambient temp. <35°C) (Based on load % 100-80 / 80-70 / 70-60 / 60-0)
Max. Transfer Voltage	300VAC±5%
Max. Recovery Voltage	290VAC±5%
Frequency Range	40Hz~70Hz
Phase	Single Phase, Grounded
Power Factor	≥0.99 @ 220-230 VAC (Input Voltage)
Output
Output Voltage	208/220/230/240VAC
Line Regulation	±1% (Battery Mode)
Freq. Range (Sync Range)	47~53 Hz or 57~63 Hz
Freq. Range (Batt Mode)	50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
Overload	Ambient temperature less than 35°C: 105%~110%: UPS in battery mode will automatically shut down after 10 minutes 110%~130%: UPS in battery mode will automatically shut down after 30 seconds 130%~150%: UPS in battery mode will automatically shut down after 3 seconds >150%: UPS shuts down immediately
Crest Factor	3:01
THD	3% THD (Linear Load); 6% THD (Non-linear Load)
Transfer Time	Line to Battery: 0ms Inverter to Bypass: 4ms (Standard conditions)
Waveform (Batt Mode)	Pure Sine Wave
Efficiency
Line Mode	88%	89%	90%	>92%	>93%
Battery Mode	83%	85%	88%	>90%	>91%
Battery
Standard Model	12V/9AH
Batt Qty (Std)	2	3	4	6	16-20
Charge Current (Std)	1A \| Preset: 1A ± 10%; Max: 1A or 2A selectable
Charge Voltage (Std)	273VDC ± 1%
Long Runtime Model	Subject to application
Batt Qty (Long)	3	6	6	16-20
Charge Current (Long)	1A/2A/4A/6A \| Preset: 4A ± 10%; Max: 1A, 2A, 4A or 6A selectable (Only for 16 battery units)
Charge Voltage (Long)	41.0VDC ± 1% \| 82.1VDC ± 1% \| 218.4V ± 1% (Based on 16 batteries)
Physical Specs
Std Model Dimensions (DxWxH mm)	310 x 438 x 88	410 x 438 x 88	630 x 438 x 88
Std Model Net Weight (kg)	12	14.1	19	29.3
Long Model Dimensions (DxWxH mm)	310 x 438 x 88	410 x 438 x 88	410 x 438 x 88	530 x 438 x 88
Long Model Net Weight (kg)	9	12	14.2	13	17
Environment
Operating Humidity	20-90 % RH @ 0~40°C (Non-condensing)
Noise	< 50dBA @ 1 meter
Operating Temperature	0~40°C (Battery life shortened at >25°C)
Operating Altitude	<1000m
Communication
Intelligent RS-232/USB	Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC
Optional SNMP	Supports power management via SNMP manager and web browser
