20,30,40kW Series DC EV charger

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	5pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE，ROHS

Product Description

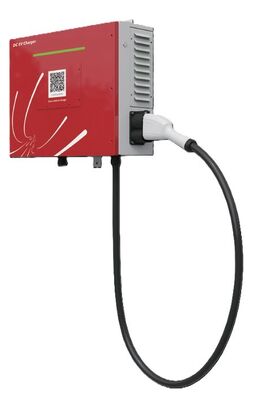

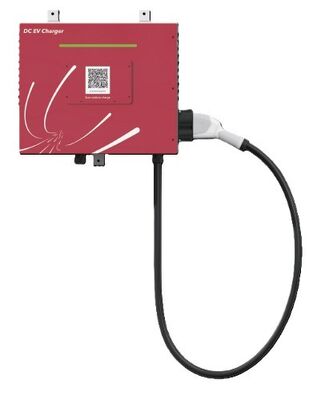

20,30,40kW Series DC EV charger

Product Description

This is a wall mounted DC charging station with a simple and non redundant design, offering extremely high cost-effectiveness;

The box comes with installation holes, which can be quickly installed using matching expansion screws;

The overall design adopts waterproof, with low requirements for installation location.

There are three power options available: 20kW, 30kW, and 40kW.

20/30/40kW charging module

Extremely cost-effective

Minimalist installation

Waterproof grade IP54

Parameters

Category	specifications	Data parameters
Appearance structure	Dimensions (L x D x H)	570mm x 210mm x 470mm
	Weight	40kg
	Length of charging cable	3.5m
	Charging standard	GB/T,CCS2,CCS1,CHAdeMo,NACS
Electrical indicators	Input Voltage	400VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	1-125A
	rated power	20 , 30 , 40kW
	Efficiency	Peak Power≥94%
	Power factor	>0.98
functional design	Communication protocol	CCPP,State Grid Corporation of China, YKC, Xiao ju and other operating platforms.
	Display	7’’ LCD with touch screen
	Access Control	NO
	Communication	Ethernet – Standard；3G/4G Modem
	Power Electronics Cooling	Air Cooled
work environment	Operating temperature	-30°C to 75°C
	Working Storage Humidity	≤ 95% RH；≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP54
safety design	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc
Fast DC charging	Intelligent charging	Reliable and durable
