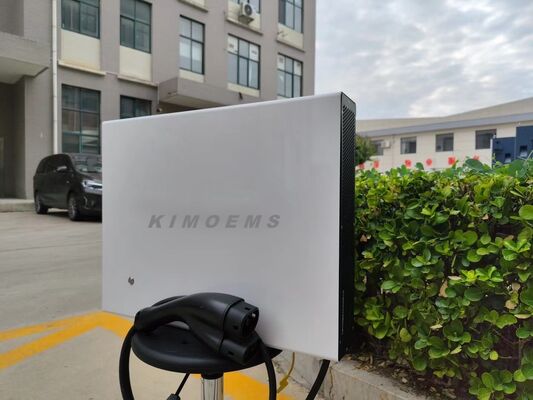

KIMOEMS Intelligent Low Power Fast Home DC EV Charger 20kW 30kW 40kW Wall Mounted

Brand Name:	kimoems or OEM
Model Number:	WY-20/30KW
MOQ:	1pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power:

20kW/30kW/40kW

Installation Method:

Wall-mounted

Connector:

GBT/CCS2/CHAdeMO/CCS1/NACS

Protection Grade:

IP30

Product Description

KIMOEMS Intelligent Low Power Fast Home DC EV Charger 20kW 30kW 40kW Wall Mounted

Advantages

Fast DC charging

Intelligent charging

Reliable and durable

Overvoltage protection

Undervoltage protection

Lightning protection

Overcurrent protection

Leakage protection

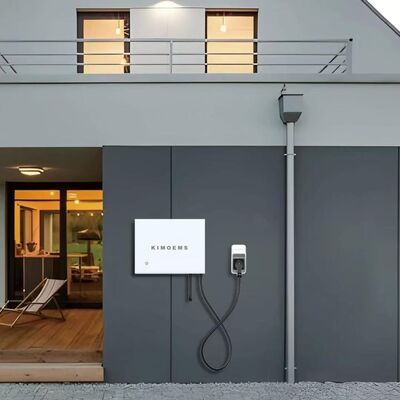

This is a small wall mounted DC charger, simple and elegant, without any complicateddetails.

The operation is very simple and suitable for use by all groups of people.

20kwand 30kw are optional for the module.

Product Model	WY-20/30/40KW
Input Voltage	380VAC (3P+N+PE),50Hz
Output Voltage	200 - 1000VDC
Output Current (default)	50A (Chdemo - 37A) / 80A/125A
Standard for Gun Muzzle	GBT/CCS1/CCS2/CHAdeMO/Tesla
Charging Module	20KW/30KW/40KW
Efficiency	≥94% at nominal output power
Power Factor	> 0.98
Operating Temperature	-30°C to 75°C
Altitude	< 3000m
Working Storage Humidity	≤ 95% RH；≤ 99% RH (Non-condensing)
AC Input Cable and Switch	310mm²+26mm² 1m 63A
Weight	30kg
Dimensions (L x D x H)	600mm x 470mm x 100mm
Installation	wall-mounted
Startup Mode	Press and hold the power button for 2 seconds to power on.
Shutdown Mode	Press the power button briefly to shut down after 2 seconds.
Power Electronics Cooling	Air Cooled
Standard	GBT 18487 & GBT 27930 / ISO 15118 / IEC 61851 / SAE J1772 / CHAdeMO1.2 & CHAdeMO 2.0 / NACS

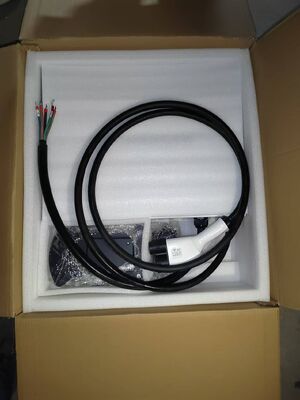

Charging Cable Length	3.5m
Noises	< 65db
Ingress Protection	IP30
Insulation (input - output)	> 2.5kV
Electrical Safety	Over-voltage protection, under-voltage protection, over-current protection, short-circuit protection
