1-10kVA Rack Mount UPS High Efficiency 98.5% PF0.8 or PF1.0

Brand Name:	kimoems or OEM
Model Number:	Refer to parameters
MOQ:	5pcs
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

1kVA Or 2kVA Or 3kVA 6kVA 10kVA

Operation:

High Efficiency (up To 98.5%)

Characteristics:

Two Versions Available: PF0.8 And PF1.0MCU Chip Control ECO Energy-saving Mode Optional Maintenance Bypass Switch (6-10 KVA Models) Add-on Output Isolation Transformer Available (installed Before Delivery) Standard EPO (Emergency Power Off) For 6-10 KVA Mo

Highlight:

rack mounted UPS high-frequency

H1KR-H10KR rack mount UPS

high-frequency rack mount UPS

Product Description

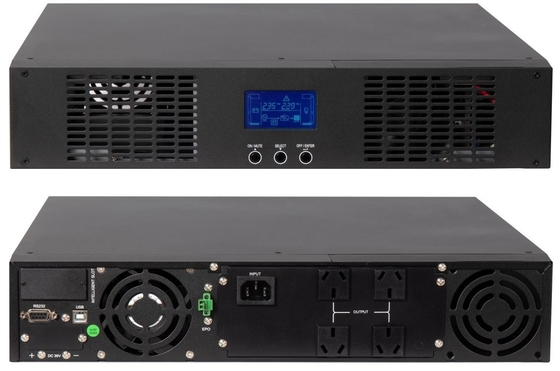

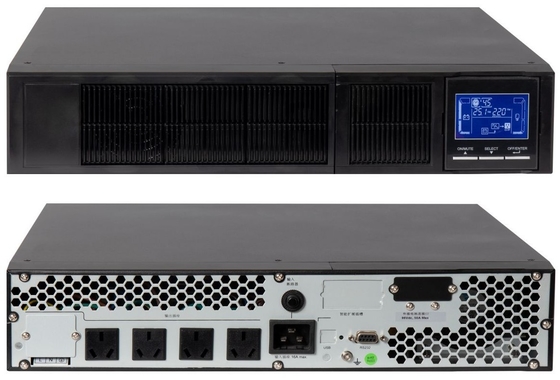

High-Frequency Rack-Mount Series H1KR-H10KR(L)

Product Features

High efficiency (up to 98.5%)

IGBT rectification technology

Compact and reliable structure

Electrical isolation

High overload capability

LCD display

Product Profile

Power Range: 1-10 kVA

Operation Mode: Single input single output (1-10 kVA)

Applications: Widely used in government, finance, telecommunications, education, transportation, meteorology, broadcasting, industrial and commercial taxation, healthcare, energy, power, and other industries.

Product Characteristics

True online dual conversion

Compatible with generator input (generator capacity must be twice the UPS capacity)

Wide input voltage range (110-300 V), suitable for harsh grid environments (1-10 kVA)

Auto-restart after power recovery when battery is depleted in battery mode

MCU chip control

ECO energy-saving mode

Optional maintenance bypass switch (6-10 kVA models)

Add-on output isolation transformer available (installed before delivery)

Standard EPO (Emergency Power Off) for 6-10 kVA models

Two versions available: PF0.8 and PF1.0

Compact size, user-friendly operation, high power density, strong stability, cost-effective, and widely applicable

Parameters

Model	H1KR	H2KR	H3KR	H6KR(L)	H10KR(L)
Capacity	1kVA/1kW	2kVA/2kW	3kVA/3kW	6kVA/6kW	10kVA/10kW
Input
Voltage Range
Min. Transfer Voltage	180VAC/160VAC/140VAC/120VAC±5% (Ambient temp. <35°C) (Based on load % 100-80 / 80-70 / 70-60 / 60-0)			110VAC±3% @ 50% load; 176VAC±3% @ 100% load
Min. Recovery Voltage	195VAC/175VAC/155VAC/135VAC±5% (Ambient temp. <35°C) (Based on load % 100-80 / 80-70 / 70-60 / 60-0)			Min. Transfer Voltage +10V
Max. Transfer Voltage	300VAC±5%			300VAC±3%
Max. Recovery Voltage	290VAC±5%			Max. Transfer Voltage -10V
Frequency Range	40Hz~70Hz			46Hz~54Hz @ 50Hz system; 56Hz~64Hz @ 60Hz system

Phase	Single Phase, Grounded
Power Factor	≥0.99 @ 220-230 VAC (Input Voltage)			None
Output
Output Voltage	208/220/230/240VAC
Line Regulation	±1% (Battery Mode)
Freq. Range (Sync Range)	47~53 Hz or 57~63 Hz			46Hz~54Hz @ 50Hz system;
Freq. Range (Batt Mode)	50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz			50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload	Ambient temperature less than 35°C: 105%~110%: UPS in battery mode will automatically shut down after 10 minutes, or switch to bypass mode if input is normal. 110%~130%: UPS in battery mode will automatically shut down after 30 seconds, or switch to bypass mode if input is normal. 130%~150%: UPS in battery mode will automatically shut down after 3 seconds, or switch to bypass mode if input is normal. >150%: UPS shuts down immediately.			AC Mode: 100%~110%: 30 minutes; 110%~130%: 5 minutes; >130%: 10 seconds Battery Mode: 100%~110%: 3 minutes; 110%~130%: 30 seconds; >130%: 10 seconds
Crest Factor	3:01
THD	3% THD (Linear Load); 6% THD (Non-linear Load)			3% (Linear Load); 5% (Non-linear Load)

Transfer Time
Line to Battery	0ms
Inverter to Bypass	4ms (Standard conditions)			0ms
Waveform (Batt Mode)	Pure Sine Wave			None
Efficiency
Line Mode	88%	89%	90%	>92%	>93%
Battery Mode	83%	85%	88%	>90%	>91%
Battery
Standard Model	12V/9AH			12V/7 Ah or 12V/9 Ah
Batt Qty (Std)	2	3	4	6	16 20
Charge Current (Std)	1A			Preset: 1A ± 10%; Max: 1A or 2A selectable
Charge Voltage (Std)	273VDC ± 1% 41.0VDC ± 1%	54.7 VDC ± 1%	82.0 VDC ± 1%	218.4V ± 1% 273V ± 1%
Long Runtime Model	Subject to application			Varies by application
Batt Qty (Long)	3	6	6	16-20
Charge Current (Long)	1A/2A/4A/6A			Preset: 4A ± 10%; Max: 1A, 2A, 4A or 6A selectable (Only for 16 battery units)
Charge Voltage (Long)	41.0VDC ± 1%	82.1VDC ± 1%		218.4V ± 1% (Based on 16 batteries)
Physical Specs
Std Model Dimensions (DxWxH mm)	310 x 438 x 88	410 x 438 x 88	630 x 438 x 88
Std Model Net Weight (kg)	12	14.1	19	29.3
Long Model Dimensions (DxWxH mm)	310 x 438 x 88	410 x 438 x 88	410 x 438 x 88	530 x 438 x 88
Long Model Net Weight (kg)	9	12	14.2	13	17
Environment
Operating Humidity	20-90 % RH @ 0~40°C (Non-condensing)			<95 % RH (Non-condensing)
Noise	< 50dBA @ 1 meter				< 58dB @ 1 Meter
Operating Temperature	None			0~40°C (Battery life shortened at >25°C)
Operating Altitude	None			<1000m**
Communication
Intelligent RS-232/USB	Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC
Optional SNMP	Supports power management via SNMP manager and web browser
