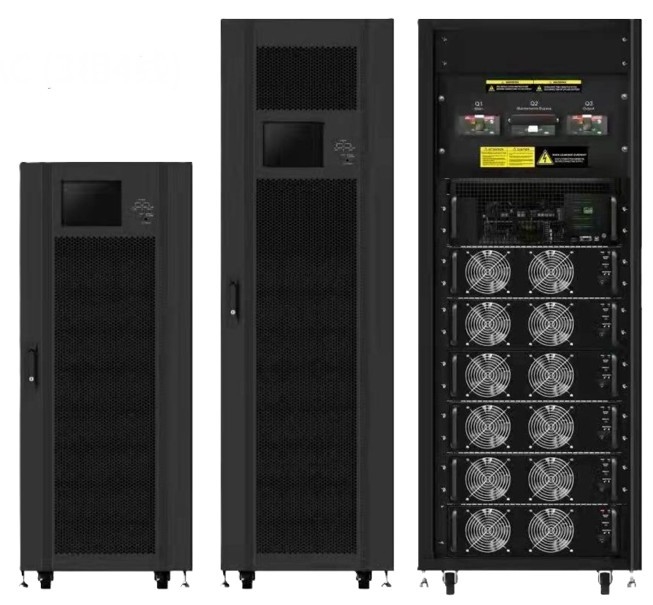

Modular UPS 20kW 30kW Power Module 60kVA to 300kVA

Brand Name:	kimoems or OEM
Model Number:	refer to parameters
MOQ:	1PC
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

60kVA 90kVA 120kVA 180kVA 200kVA 210kVA 300kVA

Power Modules:

3-10pcs

Power Module Rated Capacity:

20kw Or 30kw

Rated Frequency:

50/60Hz (Auto Selection)

Frequency Range:

40-70Hz

Characteristics:

Fully Digital Control, Flexible And Robust. 10 Inch Touch LCD, With LoT Functions. High Reliability And Environment Adaptability, With Protection Of Components Level. Extreme High Power Density, 30kW In 2U, Friendly For Space And Maintenance. Option Of 30A

STS Module:

The STS Module Is Pre-installed At The Factory And Provides Bypass Power When The UPS Enters Bypass Mode

Highlight:

Modular UPS 20KW power module

Modular UPS 30KW with warranty

60kVA modular UPS power supply

Product Description

Modular UPS 20KW/30KW Power Module 60kVA 90kVA 120kVA

Security and Stability

Modular UPS is a three-phase, four-wire online, dual-conversion, and inverter-type UPS that can operate in multiple modes:

Standby Mode

Online Mode

Battery Mode

Bypass Mode

ECO Mode

Power Failure Mode

Maintenance Bypass Mode (Manual Bypass)

Product Features

Pre-engineered STS modules, power modules, and battery modules for rapid maintenance and replacement.

Power modules feature modular and hot-swappable designs, offering a cost-effective power solution to meet diverse user requirements.

The product allows users to adjust the number of power modules based on initial needs.

As power demand increases, users can easily add additional power modules without interrupting system operation.

1. STS Module

The STS module is pre-installed at the factory and provides bypass power when the UPS enters bypass mode.

2. Power Module

Power modules are individually packaged when shipped from the factory and can only be installed into the UPS during the system installation phase.

Each power module has a capacity of 30kVA/30kW.

Equipped with a power factor correction rectifier, battery charger, inverter, and control circuit.

3. Battery Module

Battery modules are shipped separately from the factory, with each module capable of holding up to 10×12V/9Ah batteries.

PARAMETERS

Model	RM33-60kVA	RM33-90kVA	RM33-120kVA	RM33-180kVA	RM33-200kVA	RM33-210kVA	RM33-300kVA
Phase	3-in 3-out
Cabinet Capacity	60kW	90kW	120kW or 80kW	180kW or 120kW	200kW	210kW	300kW
Battery Mode	External Battery Pack
Power Module Capacity	20kVA/20kW	30kVA/30kW	20kVA/30kW	30kW or 20kW	20kVA/20kW	30kVA/30kW	30kVA/30kW
Number of Power Modules	3	3	4	6	10	7+1	10
Number of Battery Module Sets	3	3	-	-	-	-	-
INPUT
Rated Voltage	3×380/400/415VAC (3PH+N)
Voltage Range	305-478VAC@100% load,208-304VAC@<70% load
Rated Frequency	50/60Hz (Auto selection)
Frequency Range	40-70Hz
Input Power Factor	>0.99@100% load,>0.98@50% load
THDI	<3%@100% load
OUTPUT
Rated Voltage	3×380/400/415VAC (3PH+N)
Voltage Stability (Static)	≤±1% typical (balanced load),≤±2% typical (unbalanced load)
Voltage Stability (Transient)	≤±5% typical
Rated Frequency	50/60Hz
Frequency Range (Sync)	46-54Hz or 56-64Hz
Overload Capacity	110%:60min,120%:10min,150%:60sec,>150%:200ms
THD	≤1.5% (linear load),≤4% (non-linear load)
Efficiency	Up to 94.5%
Battery/Charging
Rated Voltage	±216V (12V×36 cells)
Maximum Voltage	±240V (12V×40 cells)
Minimum Voltage	±192V (12V×32 cells)
Float Charge Voltage	2.25V/cell
Boost Charge Voltage	2.35V/cell
Temperature Compensation	Yes
Max Charging Current	8A for 30kW module,6A for 20kW module				6A	8A	8A
Physical Specifications
Cabinet Dimensions (D×W×H, mm)	1100×514×763		1100×600×1475		1100×600×2010
Net Weight (kg)	182	183.5	335 or 333	437.5 or 434.5	625	549	620
Operating Environment
Temperature & Humidity	0-40°C, 0-95% RH (non-condensing)
Altitude	Rated power <1000m
IP Rating	IP20
Control & Management
Smart RS-232/USB	Compatible with Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and Mac
Optional SNMP	Supports SNMP and network management
Safety Standards
Safety	IEC/EN 60950-1; IEC/EN 62040-1
Electromagnetic Compatibility (EMC) Standard	IEC/EN 62040-2 Category C3

Model	Description	Dimensions D×W×H (mm)	Weight (kg)
PM-20HV	3P/3P 20kVA/20kW Power Module	650 × 440 × 132 (3U)	33
PM-30HV	3P/3P 30kVA/30kW Power Module	650 × 440 × 132 (3U)	34.5
Battery Module	10×12V/9Ah Lead-Acid Batteries	735 × 107 × 155	26
