APlus Modular UPS 50kW Power Module 200-500kVA Range

Brand Name:	kimoems or OEM
Model Number:	refer to parameters
MOQ:	1PC
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Range:

200kVA 300kVA 400kVA 500kVA

Power Modules:

4-10pcs

Power Module Rated Capacity:

50kw

Characteristics:

3U Single Power Module Delivers Up To 50kW Single 42U Cabinet: Capacity Up To 500kW Supports N+1 Power System Redundancy Modular Design Reduces MTTR (Mean Time To Repair)

Product Features:

Built-in Maintenance Bypass Switch: Easy Maintenance Without Output Interruption High-efficiency Dual-conversion Online UPS Flexible Battery Configuration And Adjustable Charging Current High Overload Capability Walk-in Power Function Models A+ 42U-200S (P

Highlight:

Modular UPS 50kW module

Modular UPS 200kVA to 500kVA

APlus Modular UPS with warranty

Product Description

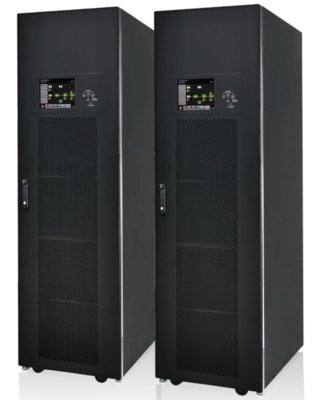

APlus Modular UPS (50kW Module) 200kVA 300kVA 400kVA 500kVA

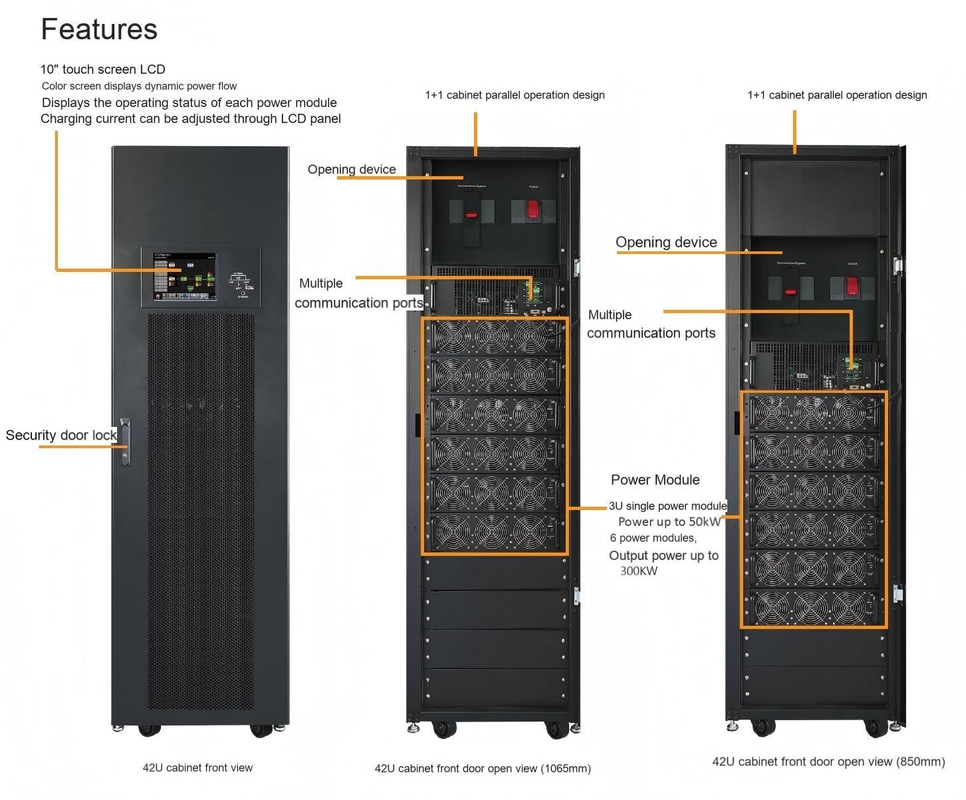

Product Features

3U single power module delivers up to 50kW

Single 42U cabinet: Capacity up to 500kW

Supports N+1 power system redundancy

Modular design reduces MTTR (Mean Time To Repair)

High scalability

Built-in maintenance bypass switch: Easy maintenance without output interruption

High-efficiency dual-conversion online UPS

Flexible battery configuration and adjustable charging current

High overload capability

Walk-in power function

Models A+ 42U-200S (PM-50S), A+ 42U-300 (PM-50), and A+ 42U-500 (PM-50) can be optionally configured with 4 switches.

PARAMETERS

Module	A+ 420J-200S (PM-50S)	A+ 420J-300S (PM-50S)	A+ 420J-300 (PM-50)	A+ 420J-400 (PM-50)	A+ 420J-500 (PM-50)
Phase	3-in 3-out
Cabinet Capacity*	200kW	300kW	300kW	400kW	500kW
Battery Type	External Battery
Power Module Capacity	50kVA/50kW
Max Number of Power Modules	4	6	6	8	10
Wiring Method (Rear)	Bottom Entry	Top Entry	Top/Bottom Entry
Number of Switches	2
INPUT
Rated Voltage	3X380/400/415VAC (3PH+N)
Voltage Range	110-300VAC @50% load,176-276VAC @100% load
Nominal Frequency	50/60Hz (Auto Detection)
Frequency Range	40-70Hz
Power Factor	>0.99 @100% load,>0.98 @50% load
THDI	<4% @100% load
OUTPUT
Rated Voltage	3X380/400/415VAC (3PH+N)
Voltage Regulation (Static)	≤±1% typical (balanced load),≤±2% typical (unbalanced load)
Nominal Frequency	50/60Hz
Frequency Range (Sync)	46-54Hz or 56-64Hz
Overload Capacity	≤110%: 60 minutes;111%-125%: 10 minutes;126%-150%: 1 minute;＞150%: 200 milliseconds
THD	≤2% (linear load);<4% (non-linear load)
Efficiency	95.50%	95.50%	95.50%	95.50%	95.50%
Battery/Charging
Rated Voltage	±192V-±240V (Selectable)
Maximum Voltage	±240V (12VX40 cells)
Minimum Voltage	±192V (12VX32 cells)
Float Charge Voltage	2.28V/cell (2.25-2.33V selectable)
Equalize Voltage	2.35V/cell
Temperature Compensation	Yes
Max Charging Current (per module)	12A (Adjustable)	12A (Adjustable)	12A (Adjustable)	12A (Adjustable)	12A (Adjustable)
Physical Specifications
Cabinet Dimensions (DXWXH, mm)	850X600X2000	850X600X2000	1065X600X2010	1100X600X2010	1065X1000X2000
Net Weight (kg)	275	282	287	308	420
Operating Environment
Operating Temperature	0-40℃
Relative Humidity	0-95% (non-condensing)
Altitude*	Rated power <1000m
IP Rating	IP20
Control & Management
RS-232/USB	Windows series, Linux, Mac
SNMP (Optional)	SNMP card and browser management
Safety Standards
Safety	IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3
Note:
If the UPS is installed or used at an altitude above 1000m, the output power must be reduced by 1% per 100m.
Model	Description	Dimensions (DXWXH, mm)	Weight (kg)
PM-50	3-in/3-out 50kVA/50kW Power Module	750X438X130 (3U)	39
PM-50 (S)	3-in/3-out 50kVA/50kW Power Module	650X442X130 (3U)	36
