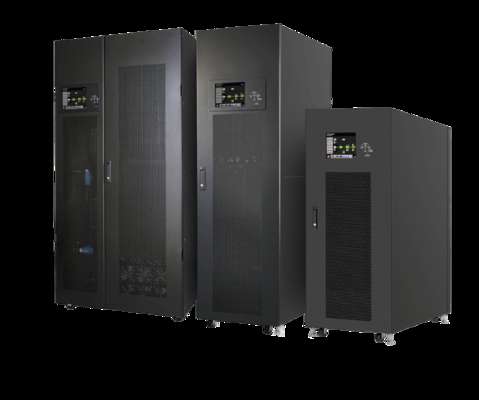

APlus Modular UPS 60kW Module 180kVA to 600kVA

Name: APlus Modular UPS 60kW Module 180kVA to 600kVA
Brand: Hefei Kimo Electrical Co.,Ltd
SKU: RM33-180kVA
Availability: InStock

Brand Name:	kimoems or OEM
Model Number:	RM33-180kVA
MOQ:	1PC
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Range:

180kVA Or 300kVA 420kVA 600kVA

Power Modules:

3pcs Or 5pcs Or 7pcs 10pcs

Power Module Rated Capacity:

60kw

Operation:

3P/3P,Online Double Conversion

Applications:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Characteristics:

Fully Digital Control, Flexible And Robust. 10 Inch Touch LCD, With LoT Functions. High Reliability And Environment Adaptability, With Protection Of Components Level. Extreme High Power Density, 30kW In 2U, Friendly For Space And Maintenance. Option Of 30A

Highlight:

Modular UPS 60kW module

Modular UPS 180kVA to 600kVA

Modular UPS with high power capacity

Product Description

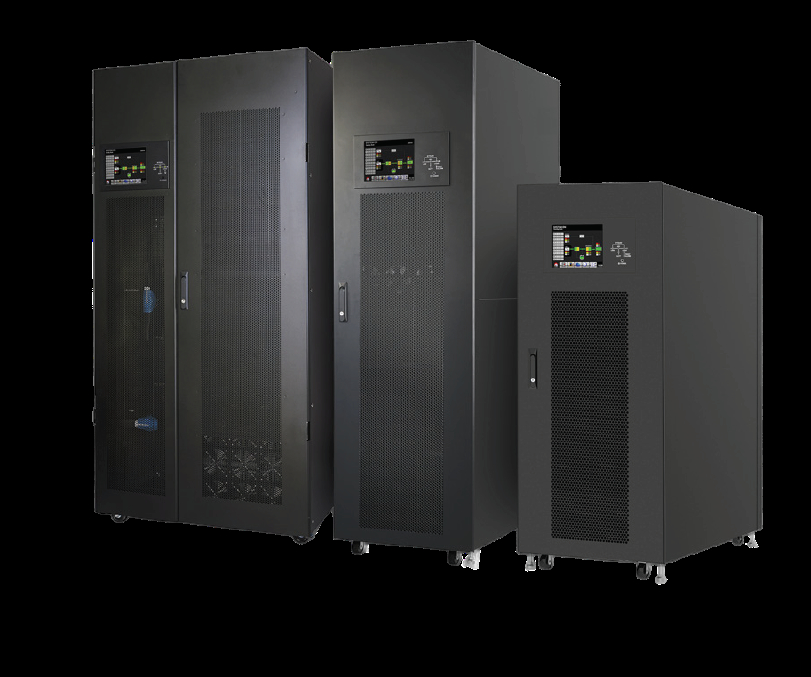

APlus Modular UPS (60kW Module) 180kVA 300kVA 420kVA 600kVA

Product Features

3U single power module delivers up to 60kW

Single 42U cabinet: Capacity up to 600kW

Supports N+1 power system redundancy

Modular design reduces MTTR (Mean Time To Repair)

High scalability

Built-in maintenance bypass switch: Easy maintenance without output interruption

High-efficiency dual-conversion online UPS

Flexible battery configuration and adjustable charging current

High overload capability

Walk-in power function

PARAMETERS

Model	A+30U-180 (PM-60)	A+42U-300 (PM-60)	A+42U-420 (PM-60)	A+42U-600 (PM-60)
Phase	3-phase Input/3-phase Output
Cabinet Capacity*	180kW	300kW	420kW	600kW
Battery Type	External Battery
Power Module Capacity	60kVA/60kW
Max Power Modules	3	5	7	10
Wiring (Rear)	Top Entry	Top/Bottom Entry	Top/Bottom Entry	Top/Bottom Entry
Switch Quantity	3	2
INPUT
Rated Voltage	3×380/400/415VAC (3PH+N)
Voltage Range	110-300VAC @50% load,176-276VAC @100% load
Nominal Frequency	50/60Hz (Auto Detection)
Frequency Range	40-70Hz
Power Factor	>0.99 @100% load,>0.98 @50% load
THDI	<3% @100% load
OUTPUT
Rated Voltage	3×380/400/415VAC (3PH+N)
Voltage Regulation (Static)	≤±1% typical (balanced load),≤±2% typical (unbalanced load)
Nominal Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Frequency Range (Sync)	46-54Hz or 56-64Hz
Overload Capacity	≤110%: 60min;111-125%: 10min;126-150%: 1min;>150%: 200ms
THD	≤2% (linear load);<4% (non-linear load)
Efficiency	96%
Battery/Charging
Rated Voltage	±192V-±240V (Selectable)
Max Voltage	±240V (12V×40 cells)
Min Voltage	±192V (12V×32 cells)
Float Charge Voltage	2.28V/cell (2.25-2.33V selectable)
Equalize Voltage	2.35V/cell
Temp. Compensation	Supported
Max Charging Current (per module)	16A (Adjustable)
Physical Specifications
Cabinet Dimensions (D×W×H, mm)	1100×600×1475	1100×600×2010		1065×1000×2000
Net Weight (kg)	224	297	308	420
Operating Environment
Operating Temperature	0-40°C
Relative Humidity	0-95% (non-condensing)
Altitude*	Rated power <1000m
IP Rating	IP20
Control & Management
RS-232/USB	Windows series, Linux, Mac
SNMP (Optional)	SNMP card and browser power management
Safety Standards
Safety	IEC/EN 62040-1
EMC	IEC/EN 62040-2 Category C3
Note: If the UPS is installed or used at an altitude above 1000m, the output power must be reduced by 1% per 100m.
Model	Description	Dimensions (D×W×H, mm)	Weight (kg)
PM-60	3-in/3-out 60kVA/60kW Power Module	750×438×130 (3U)	44
