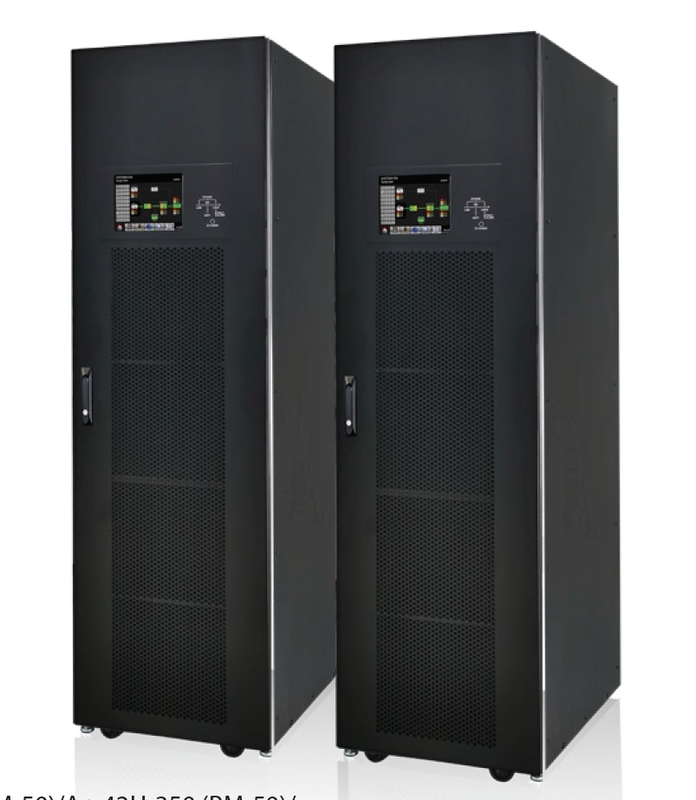

RM33-200kVA To 500kVA Modular UPS Power Supply Dual Conversion 50kW Power Module

Name: RM33-200kVA To 500kVA Modular UPS Power Supply Dual Conversion 50kW Power Module
Brand: Hefei Kimo Electrical Co.,Ltd
SKU: RM33-200kVA
Availability: InStock

Brand Name:	kimoems or OEM
Model Number:	RM33-200kVA
MOQ:	1PC
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Range:

200kVA Or 300kVA 400kVA 500kVA

Power Modules:

4pcs Or 6pcs Or 8pcs

Power Module Rated Capacity:

50kw

Operation:

3P/3P,Online Double Conversion

Applications:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Characteristics:

Fully Digital Control, Flexible And Robust. 10 Inch Touch LCD, With LoT Functions. High Reliability And Environment Adaptability, With Protection Of Components Level. Extreme High Power Density, 30kW In 2U, Friendly For Space And Maintenance. Option Of 30A

Product Description

RM33-200kVA To 500kVA Modular UPS Power Supply Dual Conversion 50kW Power Module

Description:

3U single power module with power up to 50kW Single 42U cabinet with capacity up to 500KW
Supports power system N+1
Modular design reduces MTTR (mean time to maintenance) High scalability
Built-in maintenance bypass switch for easy maintenance.
Output non-interruptible high-efficiency double conversion online UPS
Flexible battery configuration and adjustable charging current High overload capacity Power supply walk-in function
A+42U-200S (PM-50S), A+42U-300 (PM-50) and A+42U-500 (PM-50) can be equipped with 4 switches

Parameters

Model	A+ 42U-200S (PM-50S)	A+ 42U-300S (PM-50S)	A+ 42U-300 (PM-50)	A+ 42U-400 (PM-50)	A+ 42U-500 (PM-50)
Unit	3 Phase Input / 3 Phase Output
Power Capacity	200KW	300KW	300KW	400KW	500KW
Battery Type	External Battery
Single Battery Capacity	50KVA/50KW
Number of Batteries	4	6	6	8	10
Connection Method (Parallel)	Lower Wire	Upper Wire	Upper Wire	Upper/Lower Wire	Upper/Lower Wire
Number of switches	2
Input
Nominal Voltage	3 x 380/400/415 VAC (3Ph+N)
Voltage range	110-300 VAC @ 50% (Load), 176-276 VAC @ 100% (Load)
Nominal Frequency	50/60 Hz (Auto Detect)
Frequency Range	40Hz - 70Hz
Power Factor	100% (Load) > 0.99, 50% (Load) > 0.98
Total Harmonic Distortion (THD)	< 4% @ 100% Load
Output
Nominal Voltage	3 x 380/400/415 VAC (3Ph+N)
Voltage Regulation (Stability)	≤ ±1% (Nominal), ≤ ±2% (Unbalanced Load)
Nominal Frequency	50/60Hz
Frequency Range (Synchronization Range)	46Hz - 54Hz or 56Hz - 64Hz
Overload capacity	1 hour ≤ 110%, 10 minutes for 111% to 125%, 1 minute for 126% to 150%, 200 milliseconds for > 150%
Harmonic distortion	≤2%THD (linear load), ≤4%THD (non-linear load)
Efficiency	95.50%
Battery / Charging
Nominal Voltage	+/– 192V ~ +/- 240V (Optional)
Maximum Voltage	+/- 240V (12V x 40 cells)
Minimum Voltage	+/- 192V (12V x 32 cells)
Charging Voltage	2.28V / Cell (2.25V to 2.33V Optional)
Equalizing Voltage	2.35V / Cell
Temperature Compensation	Supported
Maximum Charging Current (Per Module)	12A (Adjustable)
Dimensions
Machine Dimensions (W x D x H) mm	850 x 600 x 2000	850 x 600 x 2000	1065 x 600 x 2010	1100 x 600 x 2010	1065 x 1000 x 2000
Net Weight (kg)	275	282	287	308	420
Operating Environment
Operating Temperature	0-40°C
Relative Humidity	0-95% (Non-condensing)
Altitude	< 1000m Standard Altitude
IP Protection Level	IP 20
Control Management
RS-232 Interface/USB	Supports Windows Series, Linux, and MAC
SNMP Card(Optional)	SNMP Card for Network Management
Safety Standards
Safety	IEC/EN 62040-1
Battery Compatibility	IEC/EN 62040-2 Category C3
Note: The asterisk indicates that the UPS must be used in an environment with an output voltage of 1000m or higher, and the output power must be reduced by 10%.
