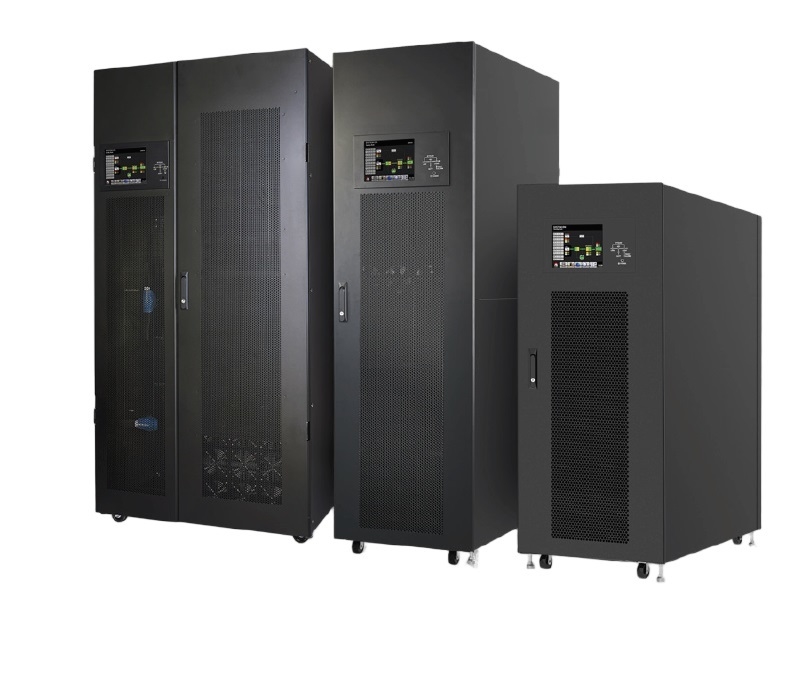

RM33-180kVA To 600kVA Modular UPS Power Supply Dual Conversion 60kW Power Module

Name: RM33-180kVA To 600kVA Modular UPS Power Supply Dual Conversion 60kW Power Module
Brand: Hefei Kimo Electrical Co.,Ltd
SKU: RM33-180kVA
Availability: InStock

Brand Name:	kimoems or OEM
Model Number:	RM33-180kVA
MOQ:	1PC
Payment Terms:	,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Range:

180kVA Or 300kVA 420kVA 600kVA

Power Modules:

3pcs Or 5pcs Or 7pcs 10pcs

Power Module Rated Capacity:

60kw

Operation:

3P/3P,Online Double Conversion

Applications:

Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, Etc.

Characteristics:

Fully Digital Control, Flexible And Robust. 10 Inch Touch LCD, With LoT Functions. High Reliability And Environment Adaptability, With Protection Of Components Level. Extreme High Power Density, 30kW In 2U, Friendly For Space And Maintenance. Option Of 30A

Product Description

RM33-180kVA To 600kVA Modular UPS Power Supply Dual Conversion 60kW Power Module

Description:

3U single power module with power up to 60kW
Single 42U cabinet with capacity up to 600kW
Supports power system N+1
Modular design reduces MTTR (mean time to maintenance)
High scalability
Built-in maintenance bypass switch for easy maintenance and uninterrupted output High-efficiency double-conversion online UPS
Flexible battery configuration and adjustable charging current
High overload capacity power supply walk-in function

Parameters

Model	A-I-30U-180 (PM-60)	A-I-42U-300 (PM-60)	A-I-42U-420 (PM-60)	A-I-42U-600 (PM-60)
Phase	3-phase input / 3-phase output
Power Module Capacity	180KW	300KW	420KW	600KW
Battery Type	External Battery
One Power Module	60KVA/60KW
Number of Power Modules	3	5	7	10
Connection Method (Rear Connection)	Upward Connection	Upward/Downward Connection	Upward/Downward Connection	Upward/Downward Connection
Number of Breakers	3	2	2	2
Input
Rated Voltage	3 x 380/400/415 VAC (3Ph+N)
Voltage Range	110-300 VAC @ 50% load; 176-276 VAC @100% load
Input Frequency	50/60 Hz (Automatic Detection)
Frequency Range	40Hz ~ 70Hz
Power Factor	100% Load>0.99; 50% Load>0.98
Harmonic Distortion (THD)	<3% @ 100% Load
Output
Rated Voltage	3 x 380/400/415 VAC (3Ph+N)
Voltage Regulation (Stable)	≤ ±1% (Stable Load) / ≤ ±2% (Unstable Load)
Frequency	50/60Hz
Frequency Range (Synchronization Range)	46Hz ~ 54Hz or 56Hz ~ 64Hz
Overload Capacity	1 hour ≤ 110%; 111% ~ 125% for 10 minutes; 126% ~ 150% for 1 minute; > 150% for 200 milliseconds
Harmonic Distortion	≤ 2% THD (Linear Load), ≤ 4% THD (Non-linear Load)
Efficiency	96%
Battery / Charging
Rated Voltage	+/- 192V ~ +/- 240V (Optional)
Maximum Voltage	+/- 240V (12V x 40 cells)
Minimum Voltage	+/- 192V (12V x 32 cells)
Floating Voltage	2.28V / Cell (2.25V to 2.33V Optional)
Equalizing Voltage	2.35V / Cell
Temperature Compensation	Supported
Maximum Current per Module	16A (Optional)
Physical Properties
Dimensions (W x H x D) mm	1100 x 600 x 1475	1100 x 600 x 2010	1100 x 600 x 2010	106 x51000 x 2000
Weight (kg)	224	297	308	420
Operating Environment
Operating Temperature	0-40°C
Relative Humidity	0-95% (Non-condensing)
Altitude	< 1000m (Standard)
Protection IP Level	IP 20
Software
RS-232/485	Supports Windows,Linux and MAC
SNMP (Optional)	SNMP card and network management
Safety Standards
Safety	IEC/EN 62040-1
Electromagnetic Compatibility	IEC/EN 62040-2 Category C3
Model
PM-60	3 Phase / 3 Output 60KVA/60KW Power Module
Dimensions (W x H x D) mm	750x438x130 (3U)
Weight (kg)	44
